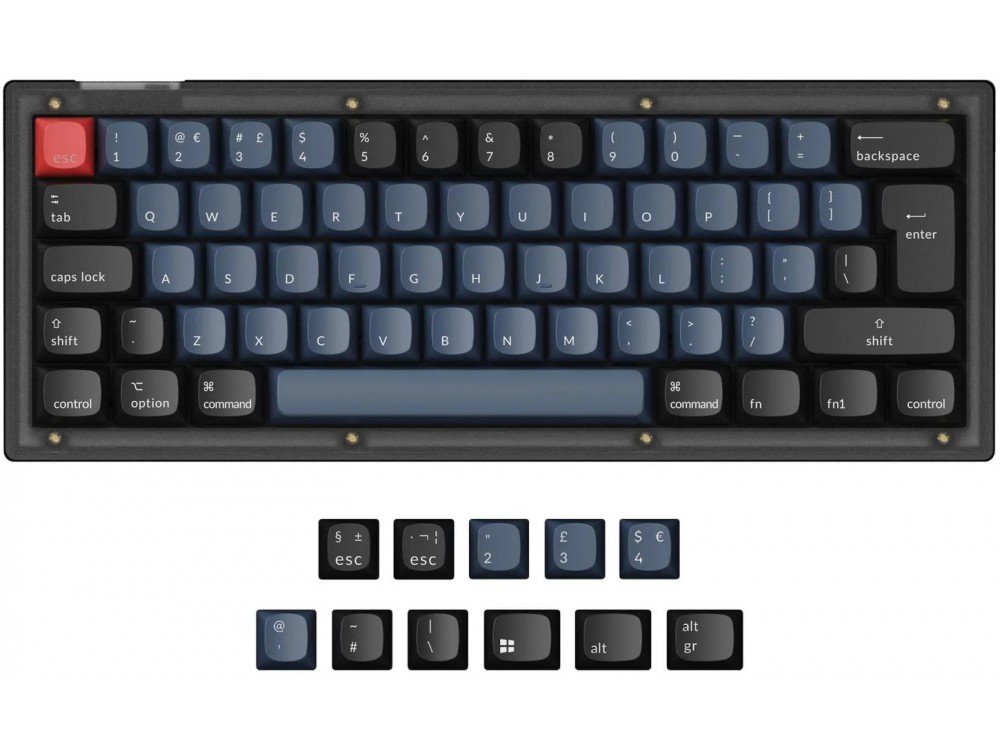

Keychron V4 60% QMK/VIA RGB Mac/PC Frosted Black Custom Keyboards

The V4 is a fully customizable mechanical keyboard suitable for different scenarios. It’s an entry-level custom keyboard with a mini 60% layout, QMK/VIA support, an acoustic silicone pad, and backlight shine-through keycaps to provide you with a great typing feel and endless possibilities.

All-Around Customizable Keyboard

To build a fully customizable keyboard, we designed every component to be easily assembled so you can customize and adjust any or every part the way you want.
Note: The screw heads are molded into the case, so they have a very strong grip and won’t fall out.

An Epic Core Inside The Keyboard

A powerful ultra-low-power ARM architecture MCU equipped with 128K Flash will provide more flexibility for developers. The polling rate is 1000 Hz out of the box, which makes latency non-existent for the competitive game.

OSA Profile ABS Backlight Shine-Through Keycap

To further leverage your typing experience, the V4 ISO version comes with our unique OSA profile (OEM profile with spherical angle) and ABS keycaps that aim to provide a more comfortable fingertip feel and a fantastic backlight shine-through effect.

Switch Layouts Between macOS & Windows

Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Keychron V4 comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.

Program V4 with QMK & VIA

With full QMK and VIA support, you can easily program and remap each key on the keyboard. The open-source firmware means endless possibilities for keyboard layouts, shortcuts, backlight effects and more.

Get the V4 keymap working on VIA

To get started, please follow these steps: download the appropriate keymap JSON file below, open VIA, turn on ‘Show Design tab’ on ‘Settings’ tab, drag the JSON file into the ‘Design’ tab on VIA to get the V4 keymap working on VIA
Since the VIA code for the V4 is still awaiting approval from Github, it is not yet automatically recognized, so you will need to manually download and enter the V4 keymap.
Keymap JSON for V4 ISO (UK) VIA for PC, Mac and Linux on GitHub

Hot-swappable

The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3-pin and 5-pin MX mechanical switches.

South-facing RGB LED Lights

The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.

Pre-lubed Keychron K Pro Switch

By optimizing the switch mold, the K Pro switch wobbles less than a standard mechanical switch and feels smoother on each hit. Plus, the factory pre-lubed process on all the K Pro switches (exclude the clicky ones), no doubt this will ensure the best smoothness at your fingertips when typing.

All New Screw-In PCB Stabilizers

The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less shaky. The big keys (space bar, shift, enter and backspace) typing experience is now more stable and smooth. The Keychron V4 also supports third-party screw-in PCB stabilizers.

Includes

Keyboard Kit

(Fully Assembled Keyboard) including

• 1 x PCB
• 1 x Steel Plate
• 1 x Sound Absorbing Foam
• 1 x Case Silicon Pad
• 4 x Sets of Stabilizers
• 1 x Set of Keycaps (OSA Profile ABS Backlight Shine-Through)
• 1 x Set of Switches (Gateron G Pro)

Cable

• 1 x USB-C to USB-C Cable
• 1 x USB-A to USB-C Adaptor

Tools

• 1 x Switch Puller
• 1 x Keycap Puller
• 1 x Screwdriver
• 1 x Allen key
