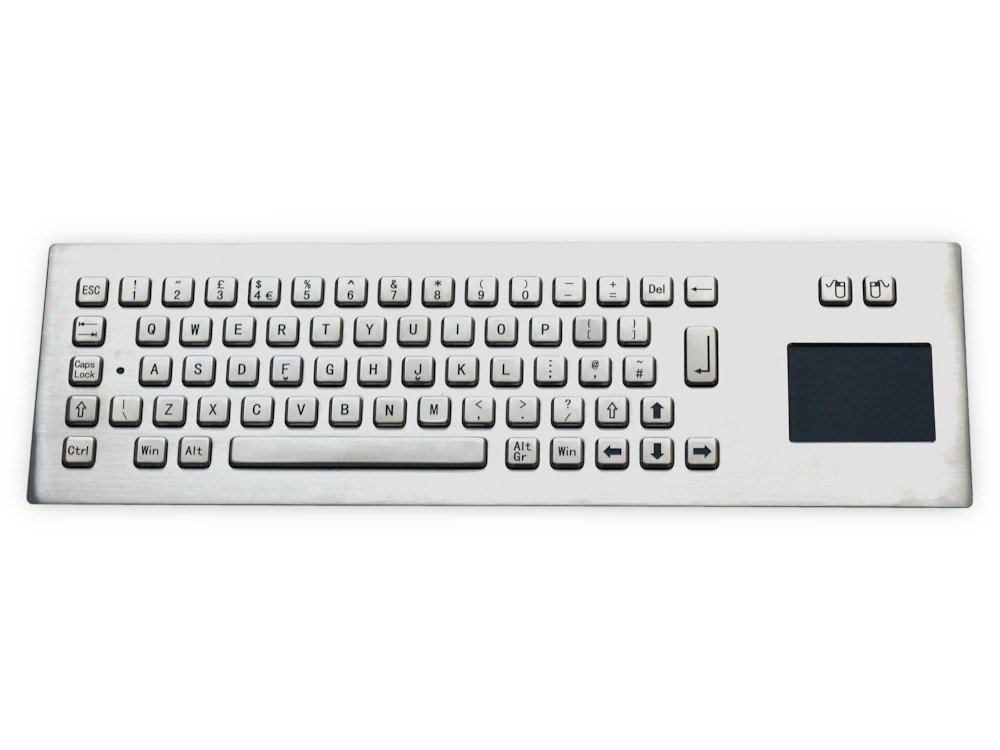

Stainless Steel IP65 Panel Mount Industrial Touchpad Keyboard – Over Panel

Our stainless steel IP65 panel mount touchpad keyboard is specially made to meet the highest demands with regards to design, functionality, longevity and high level protection.
It’s stainless steel fascia and keys are vandal-proof and protected against corrosion, it’s also dirt-proof, waterproof and weatherproof even in extreme climatic conditions and hostile environments.
The keyboard is designed to be panel mounted and has 6 M4 screw studs mounted on the underside of the front fascia (The IP65 rating will be dependant on the seal between the keyboard and your panel/enclosure, M4 nuts not included).

Dimensions:

• Front Panel: 400 x 124mm
• Touchpad: 60mm x 45mm

Features:

• 65 keys stainless steel panel mounting keyboard with touchpad
• Carbon-on-Gold key switch technology (silicon gel)
• Waterproof and dustproof
• Very rugged vandal proof design
• Can be cleaned with soapy water, disinfectant or other cleaning agents

Applications:

• Check-in Kiosk, Info-Kiosk, Internet Kiosk, Medical Kiosk, Industrial Control Platform and Gaming Machine.

Material:

• Front Panel: High quality 304 stainless steel
• Keys: High quality 304 stainless steel
• Back panel: Aluminum alloy

Mechanical Data:

• Key trip: 1.5mm
• Key pressure: 0.8～1.6 N
• Lifespan: >2 million operations per key
• Gross Weight: 1.8 KGS

Electrical Data:

• Input Voltage: 5.0VDCﾱ5%
• Electric Current: 10mA
• EMC Emission: EN55022
• ESD Standard: Air Discharge 8KV; Contact Discharge 6KV

Environmental Adaptability:

• Operating Temperature: 0ﾰ～+60ﾰ
• Storage Temperature: -25ﾰ～+80ﾰ
• Relative humidity: 30%～90%
• Atmospheric pressure: 60～106 KPa

Reliability：

• MTBF: >20,000 hours
• MTTR: < 30 minutes
• CE, FCC, RoHS, ESD compliant
• Waterproof and Dustproof class: IP65 (front panel)
• Vandal resistant class: IK07
