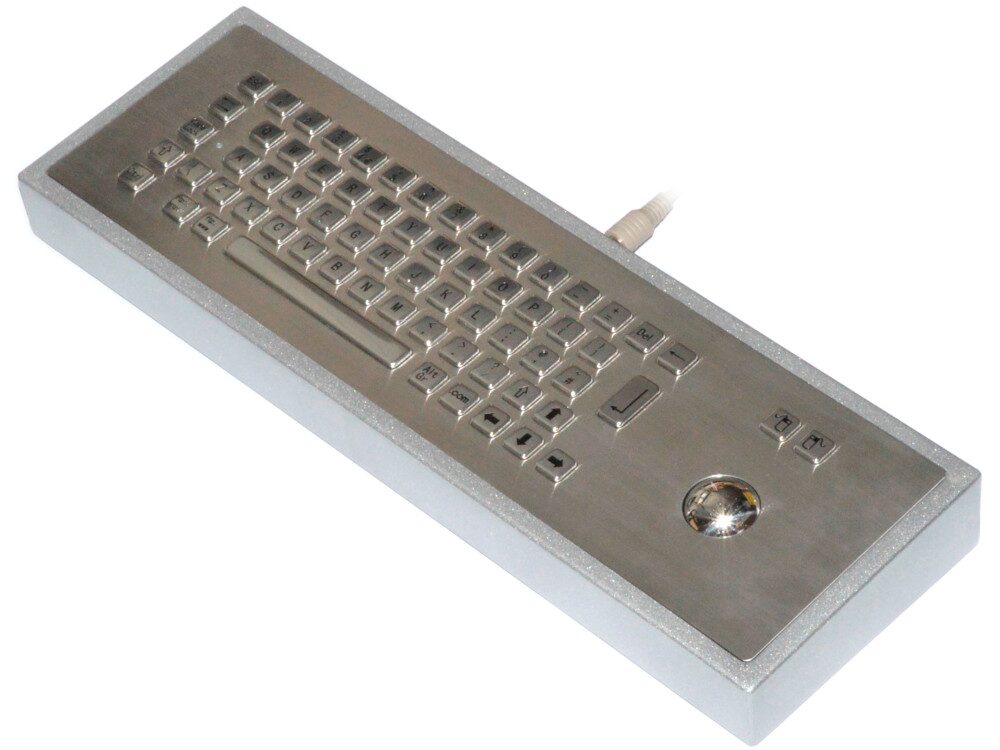

Stainless Steel IP65 IK07 Industrial Trackball Vandal Proof Keyboard

Our stainless steel IP65 panel mount trackball keyboard is specially made to meet the highest demands with regards to design, functionality, longevity and high level protection.
It’s stainless steel fascia and keys are vandal-proof and protected against corrosion, it’s also dirt-proof, waterproof and weatherproof even in extreme climatic conditions and hostile environments.

Dimensions:

• 450 x 145 x 57mm
• Diameter of trackball: 38mm

Features

• 65 keys stainless steel desktop keyboard with trackball
• Carbon-on-Gold key switch technology (silicon gel)
• Waterproof and dustproof
• Very rugged vandal proof design
• Can be cleaned with soapy water, disinfectant or other cleaning agents

Material

• Front Panel: High quality 304 stainless steel
• Keys: High quality 304 stainless steel
• Trackball: High quality 304 stainless steel

Mechanical Data

• Key trip: 1.5mm
• Key pressure: 0.8 ~ 1.6 N
• Lifespan: >2 million operations per key
• Gross Weight: 3.7 KGS

Electrical Data

• Input Voltage: 5.0VDCﾱ5%
• Electric Current: 10mA
• EMC Emission: EN55022
• ESD Standard: Air Discharge 8KV; Contact Discharge 6KV

Environmental Adaptability

• Operating Temperature: 0ﾰ ~ +60ﾰ
• Storage Temperature: -25ﾰ ~ +80ﾰ
• Relative humidity: 30% ~ 90%
• Atmospheric pressure: 60 ~ 106 KPa

Reliability

• MTBF: >20,000 hours
• MTTR: < 30 minutes
• CE, FCC, RoHS, ESD compliant
• Waterproof and Dustproof class: IP65
• Vandal resistant class: IK07

Includes: Keyboard and detachable screw-lock USB cable.
