Brand Cherry
Cherry
CHERRY MX2A RGB Plate Mount Lubed Switches
From £0.55 inc. VAT
CHERRY MX2A RGB Plate Mount Lubed Switches
Brand Cherry
Only logged in customers who have purchased this product may leave a review.
Overview

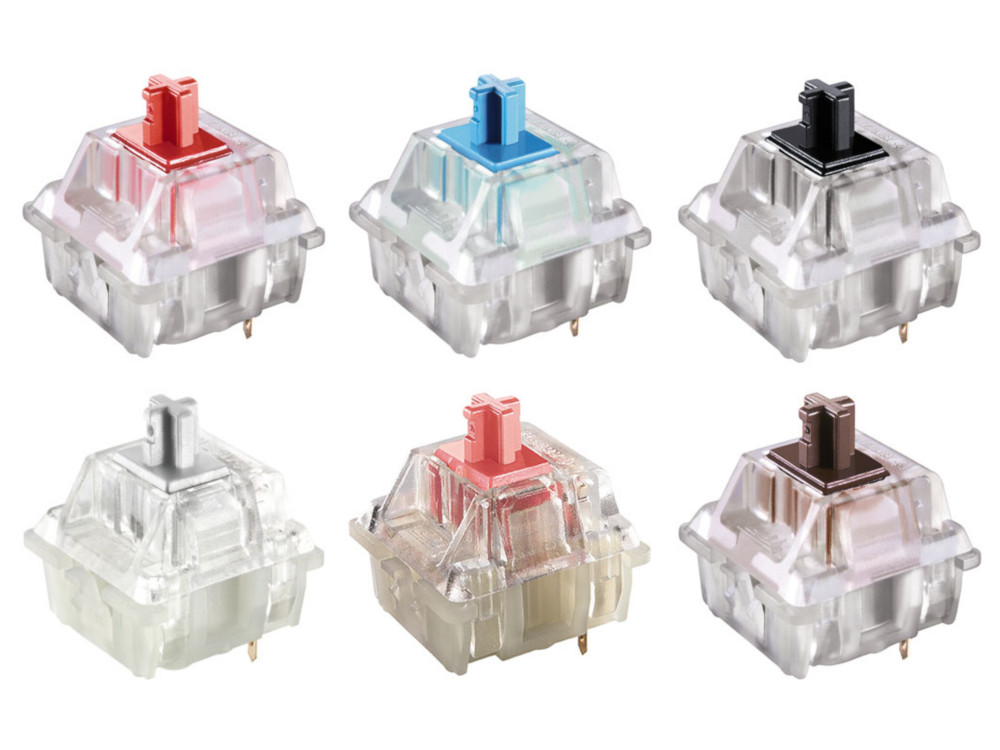

The CHERRY MX RGB ‘red’ soft linear key switch, to fit Filco keyboards, perfect for a switch swap or to make your own keyboard!
On it’s base this has 2 solder pins and a large plastic locator pin, but it does not have the 2 smaller fixing pins found on some CHERRY switches, and does not include a diode or LED.
| Electrical characteristics | ||
| Switching voltage | 12 V AC / DC max. | |
| Switching current | 10 mA AC / DC max. | |
| Dielectric strength | 500 V / 50 Hz | |
| Durability at 5V, 1mA | 50,000,000 | |
| Mechanical characteristics | ||
| Contact configuration | Single-pole contact | |
| Action | Linear | |
| Actuator travel | 4 ï¾± 0.5 mm | |
| Pretravel | 2 ï¾± 0.6 mm | |
| Initial force | 25 cN min. | |
| Actuation force | 45 ï¾± 20 cN | |
| Pressure point force | NA | |
| Bounce time during actuation with 0.4 m/s | <5 ms | |
| Standard lead spacing | 19.05 mm (16 mm min.) | |
| Fastening | Snap fastening in frame | |
| Materials | ||
| Insulation materials | Thermoplastics (min.UL 94 HB) | |
| Spring | Stainless steel | |
| Contacts | High-quality gold alloy | |
| Other Characteristics | ||
| Protection class | IP 40 | |
| Operating temperature | -10 ï¾°C to +70 ï¾°C | |
| Storage temperature | -40 ï¾°C to +70 ï¾°C | |
| Humidity (without condensation) | 5 % to 95 % | |
